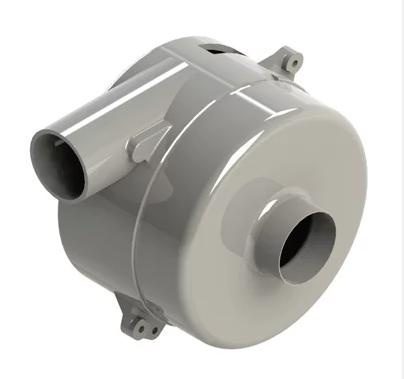

AMETEK LAMB ELECTRIC 117630-04
Детали
- Lamb Electric
- Description RoHS and REEACH Compliant; No Inlet tube;;1.25" Diameter Inlet Hole; Four Mounting Ears Tapped #10-32 UNF-2B Roll Formed Threads Through on a 6.5" Diameter Bold Circle; All Mounting Bosses...
- Напряжение: 240
Технические данные
| Параметр | Значение |
|---|---|
| Тип | Lamb Electric |
| Описание | Description RoHS and REEACH Compliant; No Inlet tube;;1.25" Diameter Inlet Hole; Four Mounting Ears Tapped #10-32 UNF-2B Roll Formed Threads Through on a 6.5" Diameter Bold Circle; All Mounting Bosses Removed Product details SKU 117630-04 Blower Stages 2 CFM @ 2-in Orifice 65 Discharge Thru Flow Max Amps 3 Max Pressure in H2O 50" Peak Air Watts 400 Vacuum (H20 sealed) 47" Volts 240 |
| SKU | 117630-04 |
| Blower Stages | 2 |
| CFM @ 2-in Orifice | 65 |
| Выпуск | Thru Flow |
| Max Amps | 3 |
| Max Pressure in H2O | 50" |
| Peak Air Watts | 400 |
| Vacuum (H20 sealed) | 47" |
| Напряжение | 240 |
| Ступени вентилятора | 2 |
| Расход воздуха (CFM) | 65 |
| Макс. ток (А) | 3 |
| Макс. давление (in H2O) | 50" |
| Пиковая мощность (Air Watts) | 400 |
| Разрежение (H2O) | 47" |
