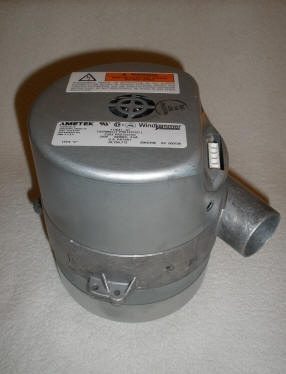

AMETEK LAMB ELECTRIC 117641-56
Детали
- Lamb Electric
- Description ROHS Compliant Version of 117641-46; With 1.75" Diameter and 1.75" Diameter Inlet Tube on Motor Fan Shell; Anti-Torque Adhesive on the Potentiometer and Potentiometer Access Hole Covered w...
- Напряжение: 240
Технические данные
| Параметр | Значение |
|---|---|
| Тип | Lamb Electric |
| Описание | Description ROHS Compliant Version of 117641-46; With 1.75" Diameter and 1.75" Diameter Inlet Tube on Motor Fan Shell; Anti-Torque Adhesive on the Potentiometer and Potentiometer Access Hole Covered with a Metal Foil Tape Disc; Silicon Coating on PC Board and Customer Part number on Label; Modified Low Voltage Power Supply on PCB; Special Calibration Product details SKU 117641-56 Blower Stages 3 CFM @ 2-in Orifice 90 Discharge Tangential Bypass Max Amps 3.5 Max Pressure in H2O 61" Peak Air Watts 400 Product Bulletin Download Vacuum (H20 sealed) 53" Volts 240 |
| SKU | 117641-56 |
| Blower Stages | 3 |
| CFM @ 2-in Orifice | 90 |
| Выпуск | Тангенциальный Байпасный |
| Max Amps | 3.5 |
| Max Pressure in H2O | 61" |
| Peak Air Watts | 400 |
| Product Bulletin | Download |
| Vacuum (H20 sealed) | 53" |
| Напряжение | 240 |
| Ступени вентилятора | 3 |
| Расход воздуха (CFM) | 90 |
| Макс. ток (А) | 3.5 |
| Макс. давление (in H2O) | 61" |
| Пиковая мощность (Air Watts) | 400 |
| Технический бюллетень | Download |
| Разрежение (H2O) | 53" |
